food grade nylon filter mesh

FOB Reference Price:Get Latest Price
$0.40 - $8.00 / Square Meters | 50 Square Meter/Square Meters (Min. Order)
Model Number:
Filter Mesh Cloth
Aperture:
40-1900 micron
Lead Time:
Quantity(Square Meters) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Maishi
Usage:
Liquid filter, air filter, dust filter
Type:
Filter mesh
Material:
Nylon, 100% Nylon
Hole Shape:
Square
Filter Rating:
27%-80% Filter Mesh
Thickness:
60-1200 micron
Length:
30 m, 50 m or at request
Width:
0.6m -3.68m
Weave Type:
Plain
Yarn Style:
Monofilament
Mesh Count:
10 mesh to 330 mesh per inch
color:
white
Supply Ability
Supply Ability:
5000 Square Meter/Square Meters per Day
Packaging & Delivery
Packaging Details
Pack the mesh with paper tube and plastic bag, then in carton
Port
Xingang Port,Tianjian
Lead Time :
Quantity(Square Meters) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated
Product Description

The production according to ISO9001 quality management system. Mesh opening produced are from 40 micron to 1900 micron with the maximum width of 368 cm. Our annual capacity is more than 5 million square meters. Goods exports to NORTH AMERICA, SOUTH AMERICA, EUROPE, ASIA, MIDDLE EAST and AFRICA.

Main specification as follow:

Opening size: From 40 micron to 1900 micron
Material: PA6 (Nylon), PA66 (food grade)
Width range from: 0.6 m-3.68 m
Characters: the mesh with great precision exact and regular square holes, food grade, very good dimensional stability and no any chemicals treatment in the production process
Applications: nylon mesh is available in standard and food grade for food, chemicals, medical and automotive paint applications.

Company Information

Hebei Maishi Wire Mesh Group is one of the top manufacturers and exporters of PA6,PA66,Polyester monofilament filter mesh in China.Our company was connected with production of monofilament filter mesh since 1986, in China.The machinery(from Switzerland Sulzer Looms P7100 & P7150) and apparatus used in production process fully based on the high computer technology.

1. Dedicated and experienced weavers.
2. Consistent quality products.
3. On-time delivery.
4. We have 15 R&D technical staffs, with more than 10 years experience.
5. 90% repeat customers.
6. Reasonable claim refund system.

Quality Control

High quality is guaranteed by the usage of high tensile, low elongation, direct spinning monofilament 100% polyester yarns (not split yarns which are weak), strict quality control in each production process and final inspection by our Quality Control System. At Final Inspection, every meter of fabric is inspected for any kind of fault according to our Quality Control System. Only tested, approved, without-fault, A-Grade fabric is sold to our customers.

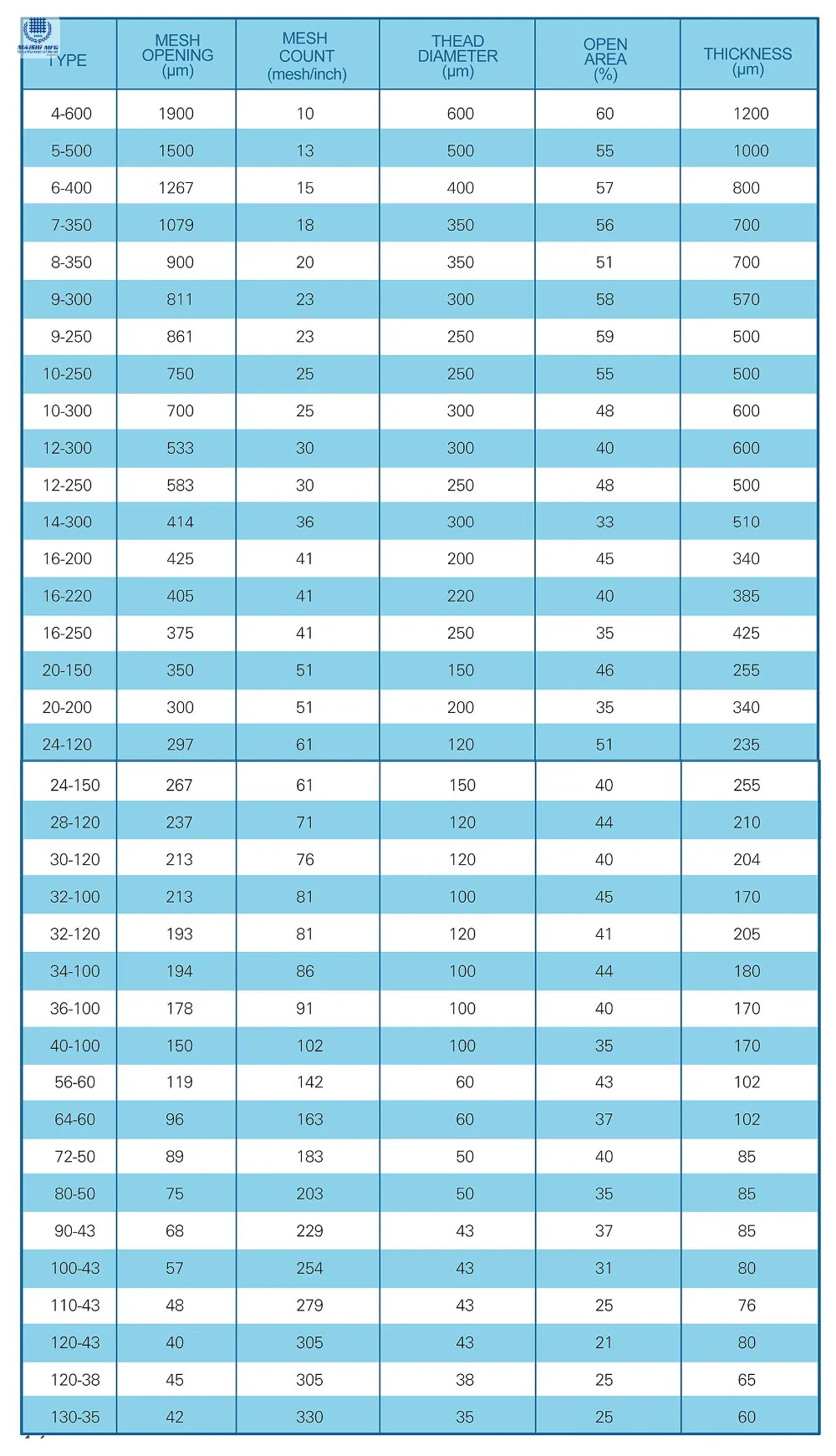

Specification List

Maishi Group can weave all the specifications according to international standard. Other non-standard specification can negotiate according to customer's order. Most of our mesh are in stock.

Features&Application

Features

- Manufactured by 100% nylon
- No unwanted chemicals, no any chemicals treatment in the production process
- Very safe, very thin, food grade
- Can made by disc, tube, piece, roll any sizes and shape, max roll length 1000m
- High tensile, working temperature under 200ºC
- Very good dimensional stability
1. Due to their uniformity they can be woven with great precision to give exact and regular apertures
2. The resulting material has a very smooth surface so that the filtered particles will easily separate
3. They have high tension and low elongation

Applications

We provide precision filter fabrics for liquid filtration, separation and sifting, with special-made processing machines and equipment, MAISHI is capable of heat-slitting mesh into mesh ribbons without fraying edges.
It is widely used in filteration (wather,flour, juices. soybean milk, oil, cheese, air purification, power coating filtering in industry etc. ), printing and dyeing, the industries of petroleum, chemical, metallurgy, cement, environmental dedusting etc.

Packing & Delivery

We have two kind of packing:

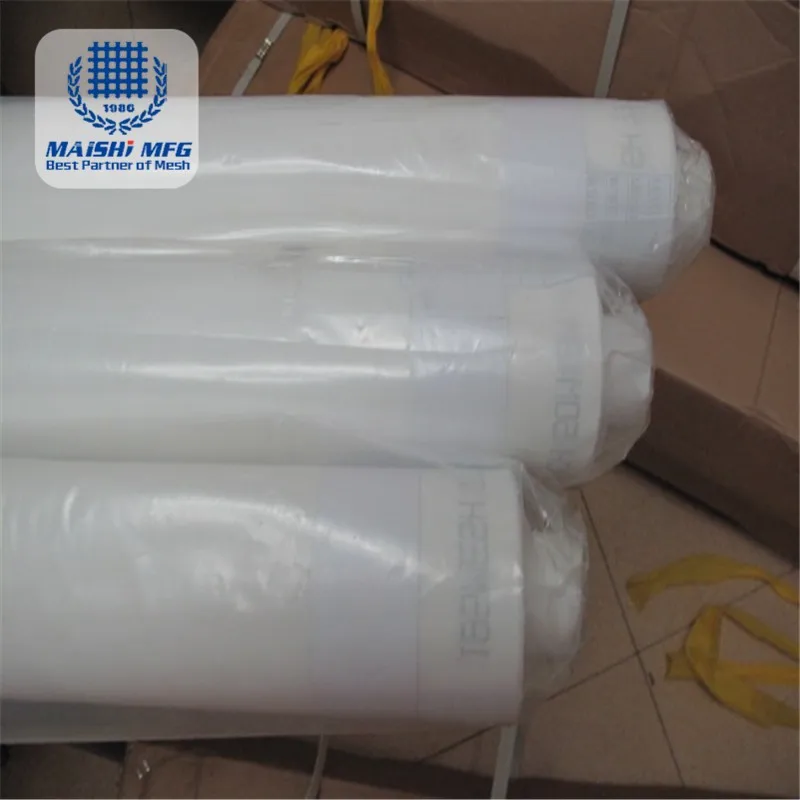

1.Filter mesh in rolls
- pack the mesh with paper tube and plastic bag, then in carton.
Suitable for large quantites and ocean shipping.
2.Filter mesh with fold
- fold the mesh into plastic bag, then in carton.
Suitable for small quantites have no requirement on the crease.

FAQ&Contact

Q:Can you print our required marks on the mesh?
A:Yes, HEBEI MAISHI can print marks according to your request.
We'll print the specification on the mesh edge if you have no special requirement.
Q:Can we get samples before buying?
A:Yes, we're pleased to offer you samples for your testing freely 2m each sizes.Maishi trust our quality can be satisfied.
Q:I am a small wholesaler, do you accept small order?
A:Small order is no problem, we'd like to grow up with you together.
Q:How can you guarantee for quality and delivery time?
A:For delivery time, we usually have stocks from 500m-10000m for common size.So, we can ship the goods in time to our customers.
We can guarantee our customers if the mesh has problems, they can return back to us;We'll ship replacement mesh free cost with next orders.
