High Grade Stainless Steel Woven Mesh Wire Screen

FOB Reference Price:Get Latest Price
$8.00 - $25.00 / Meters | 300 Meter/Meters (Min. Order)
Wire Diameter:
0.0258 - 1.8 mm
Aperture:
0.038mm-10.9mm
Lead Time:
Quantity(Meters) 1 - 1000 >1000
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Material:
Stainless Steel Wire
Type:
Weave Wire Mesh
Application:
Woven Wire Mesh
Weave Style:
pw, tw,dw
Technique:
Woven
Model Number:
HBMS
Brand Name:
HBMS
Packing::
pvc bag,waterproof paper,pallets
Materials::
304, 316
Standard roll length::
30m,30.5m as request
Width:
0.9144m, 1.0m, 1.22m or at request
woven type:
pw, tw,pdw,tdw,rdw
mesh count:
0.5 mesh-635 mesh
Hole shape:
Square Hole
Product name:
High Grade Stainless Steel Woven Mesh Wire Screen
Supply Ability
Supply Ability:
9000 Square Meter/Square Meters per Day High Grade Stainless Steel Woven Mesh Wire Screen
Packaging & Delivery
Packaging Details
Paper Tube / Mesh / Waterproof Paper / PVC Bag / Poly-wood Case.
Custom packing available at request
High Grade Stainless Steel Woven Mesh Wire Screen
Port
xingang sea port
Lead Time :
Quantity(Meters) 1 - 1000 >1000
Est. Time(days) 10 To be negotiated

High Grade Stainless Steel Woven Mesh Wire Screen



Hebei Maishi Wire Mesh Manufacture Group supply high grade Stainless Steel Wire Mesh with good quality,favorable price and best service.Welcome to contact us if you have inquiry.

Material: 316,other material AISI202, AISI302, AISI304, AISI 304 L, AISI 316, AISI 316 L, AISI317, 321 and 430 etc is also available.











Weave Type

Plain Weave Mesh

Plain Dutch Weave Mesh

Twill Weave Mesh

Plain Dutch Weave Mesh

Twill Dutch Weave Mesh

Reverse Dutch Weave Mesh

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave:  In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave:  difference from standard Dutch weave lies in the thicker warp wires and less weft wires.



Normal mesh sieze:

plain weave: 0.5X0.5mesh to 635X635 mesh;

twill weave:20x20mesh to 400x400mesh;

plain dutch weave:10X64mesh to 80X700mesh;

twill dutch weave:20x250mesh to 400X2800mesh;

reversed dutch weave: 48x10mesh to 720x150mesh.





Wire diameter:1.8mm-0.025mm

Roll width:0.9144m,1.0m,1.22m,1.524m,1.83m,etc. any width available at request.

Roll length:30m or 50m,any length available at request.

Sample:Free sample sent on request.



 Package of stainless steel wire mesh:

Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" as well as the "woven bag" on the finished roll, Final loaded in the strong wooden case or as customers' requirement

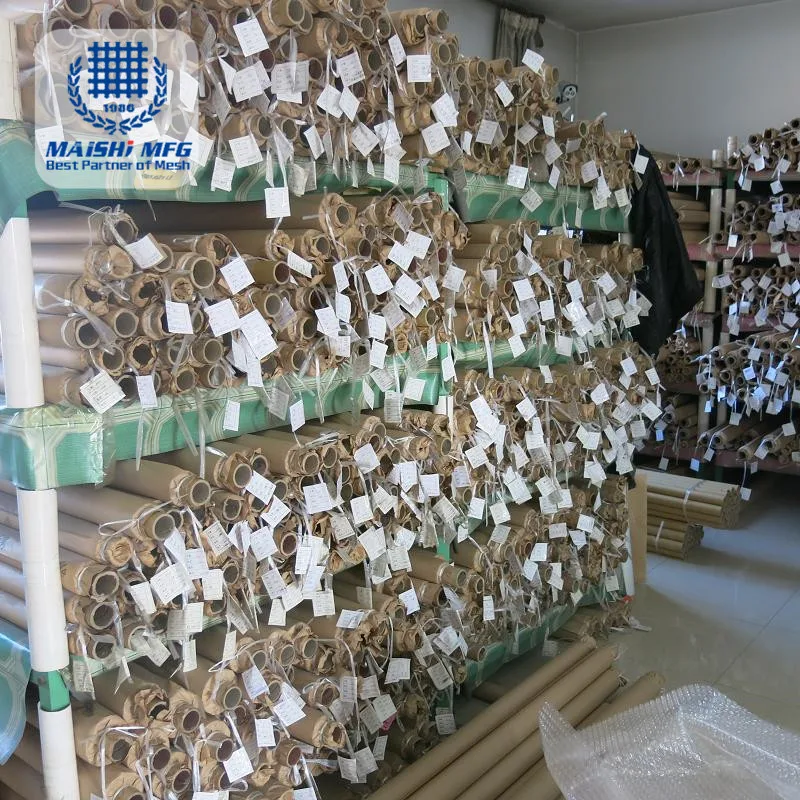

Factory Show



Hebei Maishi Printing Mesh Manufacture Factory is one of the top manufacturers and exporters of screen printing mesh.Our company was connected with production of metal wire mesh since 1986 and monofilament polyester screen printing mesh(bolting cloth) and nylon printing meh since 1995, in China. The machinery( Width 3900mm from Switzerland Sulzer and WJ1300/1600 A, B, D)  and apparatus used in production process fully based on the high computer technology.

  • 26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.
  • Dedicated and experienced weavers.
  • Consistent quality products.
  • On-time delivery.
  • We have 15 R&D technical staffs,with more than 10 years experience.
  • 80% repeat customers.
  • Reasonable claim refund system.

Payment:

100%T/T in advance if order amount less thanUSD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.

L/C payment is workable.

Any other payment term can be negotiatory





Our tenet:top credit,quality goods,favourable price,excellent service

Guarantee:Goods can be compensated and returned if you are not satisfied with the quality.

We warmly welcome all friend from all over the world to be our business partners on the basis of equality and mutual benefit and to create a good future.







.
