Food grade polyester filter screen mesh

FOB Reference Price:Get Latest Price
$0.69 - $26.00 / Square Meters | 50 Square Meter/Square Meters (Min. Order)
Aperture:
30-1300 micron
Lead Time:
Quantity(Square Meters) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Food Shop, Food & Beverage Shops
Place of Origin:
Hebei, China
Brand Name:
Maishi
Usage:
Air Filter, filter
Type:
filter mesh
Material:
Polyester
Hole Shape:
Square
Filter Rating:
99%
Thickness:
42 micron-810 micron
Length:
30m, 50m, or at your request, 30m/roll, 50m/roll or at request
Width:
30inch-145inch, 0.6m-3.65m
Color:
White
Specification:
6T-165T
Application:
air filter, liquid filter, etc.
Delivery Time:
5-7 days
Product Name:
Food grade polyester filter screen mesh
Supply Ability
Supply Ability:
60000 Square Meter/Square Meters per Month polyester filter mesh
Packaging & Delivery
Packaging Details
1. Folding the mesh each roll and packed with plastic bag, then in cartons. Suitable for small quantity and have no requirement for the crease.
2. Rolling the mesh into paper tube each roll and packed with plastic bag, then in carton. Suitable for large quantity and the mesh has better surface than folding type.
polyester filter mesh
Port
Xingang, China
Lead Time :
Quantity(Square Meters) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated



Company Profile

MAISHI MANUFACTURE GROUP is one of the top manufacturers and exporters of filter mesh.Our company was connected with production of metal wire mesh since 1986 and monofilament polyester filter mesh(bolting cloth) and nylon meh since 1995. The machinery(from Switzerland Sulzer Looms P7100 & P7150) and apparatus used in production process is fully based on the high computer technology.
We adhere to the globai implementation of the sustainable development strategy, regard helping every customer to achieve healthy development as its responsibility, to achieve the harmonious coexistence between company, employees and partners.



Advantage
· Dedicated and experienced weavers.
· Consistent quality products.
· On-time delivery.
· We have 15 R&D technical staffs,with more than 10 years experience.
· 80% repeat customers.
· Reasonable claim refund system.



Product Details

Polyester filter screen mesh are highly resistant to abrasion and mechanical strain, and many chemicals.
The production according to ISO9001 quality management system. Mesh produced are from 30 micron to 1000 micron with the maximum width of 365cm. Our annual capacity is more than 5 million square meters. Goods exports to NORTH AMERICA, SOUTH AMERICA, EUROPE, ASIA, MIDDLE EAST and AFRICA.



Technical Info
Temperature for continuous work: 305ºF(150ºC)
Chemical resistance: PH 1-7
We can cut the mesh into rolls, disc, ribbons, tubes according to customers order



Main specification as follow:
Material: 100% Polyester yarn

Mesh count: 6T-165T
Width range from: 0.6m-3.65m







TYPE

MESH COUNT

APERTURETHREAD DIAMETEROPENINGTHICKNESSINK THROUGH VOLUME THEORETICALLYTENSILE STRENGTH


(mesh/inch)

(micron)(micron)(%)(micron)(cm³/m²)TENSILE STRENGTH (N/CM)
6-40015130040065780-810560110
7-35018350106755585-598389110
8-3002097030058550-580406100
10-2502570025049508-51835585
12-1403068514068273-27518965
12-1503069615067270-27418050
12-2503061025053495-50530585
15-2503846725049489-50121383
16-1204051512065225-23014762
16-1404046114058230-23813965
16-1504048515058282-29216465
16-2004040320044329-34115170
16-2504035625034420-42514585
18-1504541015053255-27513850
20-80503998069132-1429236
20-1005038010062165-17210550
20-1505035815050252-25712655
21-80553788068125-14012536
21-1505533015046260-28012355
24-80603438065132-1368642
24-1006031610057188-19510949
24-1206030312051230-24010451
24-1506027315042249-25510060
28-80708026258130-1387940
28-1007010024350165-1748545
30-1207521312041235-24510252
32-64802366460105-1106831
32-80802378055120-13011040
32-1008021210046145-1556948.5
34-1008519810044165-1727150
36-80902028051145-1507045
36-90901859045155-1656549
36-1009018210041175-1856051
39-55100195555688-965524
39-801001768048148-1537331
39-10010015410037168-1736042
43-801101478040.8125-1315331
47-55120152555188-9647.629
48-701201357041108-12045.530
51-5551134555092-984728
53-48135139485585-904826
53-55135128554788-9644.529
54-641371156438.588-10538.930
54-701371087034108-1204031
58-55145118553889-9439.530
59-45150124455483-872931
59-48150121485185-894329
59-55150114554585-903830
59-641501056436103-1083925
61-48155115484976-834130
62-64155105644298-1073331
64-45160105484373-8236.530
64-53160105534478-863430
64-5516098553885-9536.130
64-6416088643095-10530.731
68-5517585553485-9529.230
68-64175786429108-11032.032
72-4818090483675-8433.128
72-5518080553389-953129
77-4819581483480-852928
77-5519575552886-9226.629
80-4820072483375-8428.727
90-4823056482577-8523.525
100-4025058403766-7321.328.5
110-4028052403378-8520.529.6
120-3130549313650-5519.529
120-34305453430.552-5718.430.5
120-4030537402165-6713.532
130-3433042343050-5516.531
130-4033031401763-681232
140-3135534312548-531329
140-34355313419.556-6214.431
150-3138036312943-4713.130.5
150-34380303420.556-6214.930.5
165-31420313122.552-5812.528.9





Maishi ensure the quality of Polyester filter screen mesh

We buy yarn from Jintong,we inspect the yarn when they unloaded in our factory. (tolerance, tensile strength, physics test etc.).

After that, we put the warp wire on beam, draw the warp wire into heddle and reed. Then our experienced weaver will start weaving according to orders.

Initial survey will be done after weaving. Then start heat setting treatment and physical properties inspection, before we get tentative finished rolls(60-500 meters big rolls).

In the end, we’ll cut the small rolls(20m-50m) according to customer orders after a final inspection.



MAISHI makes strict test before the goods dispatched from our factory to ensure the quality of Polyester filter screen mesh. Make sure customers get perfect quality.

· Mesh Count inspect
· Thickness inspect
· Thread diameter& Hole size inspect
· Tensile Strength inspect
· Surface Tension test

Packing

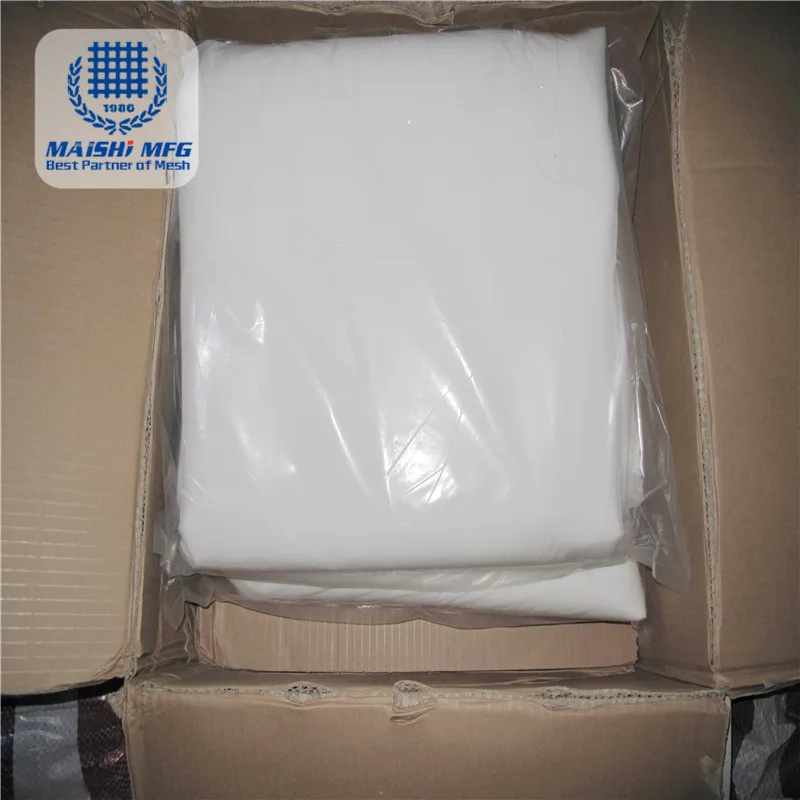

1. Folding the mesh each roll and packed with plastic bag, then in cartons. Suitable for small quantity and have no requirement for the crease.

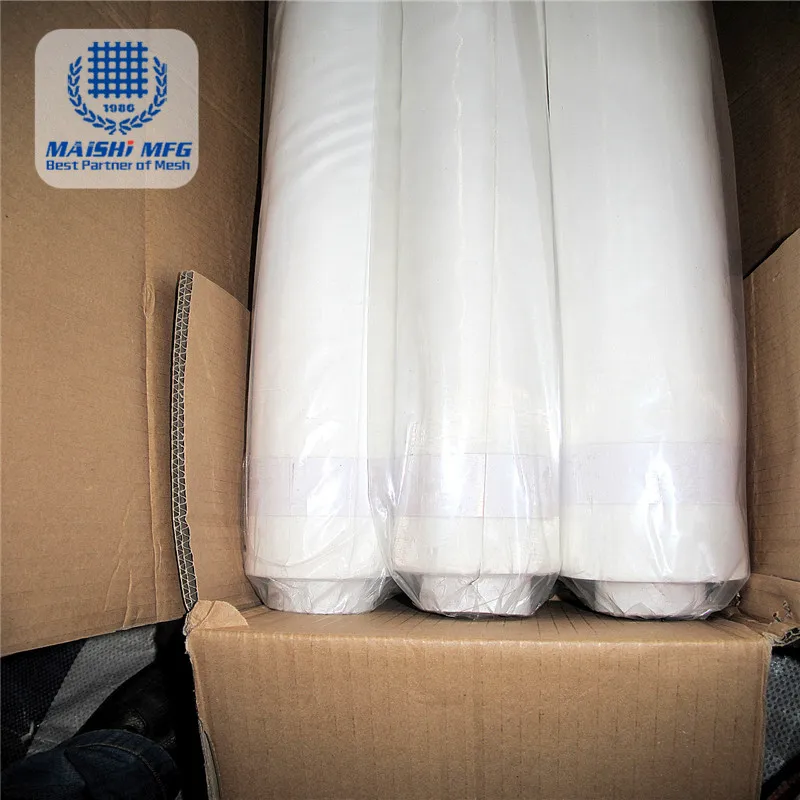

2. Rolling the mesh into papertube each roll and packed with plastic bag, then in carton. Suitable for large quantity and the mesh has better surface than folding type.

Delivery Time
Usually we can ship the goods within 5-10 days according to different quantity as we have stocks 500-2000m for different mesh count.
The exact delivery time will be checked according to final order quantity and our production status.
